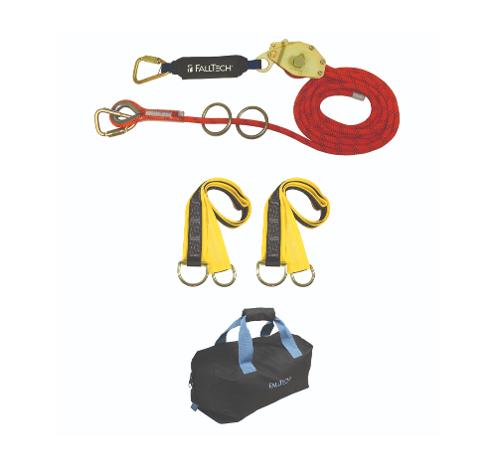

The FallTech Kernmantle rope two -person temporary horizontal lifeline is a completely engineeered system with all of the components necessary to quickly install a complete horizontal lifeline.

This Kernmantle rope HLL includes the components required to quickly and easily set-up a safe and effective horizontal life line system with 100% tie-off for continuous fall protection.

Features

• Durable 11/16” Kernmantle rope with stitched thimble-eye end termination.
• Line tensioner allows for easy set-up and tear-down and limits over tensioning of the system.
• Integral energy absorber to limit fall arrest forces.
• Two heavy-duty pass through anchor straps and carabiners provide a secure connection point at each end.
• Two alloy steel connection O-rings.
• Carry bag allows for easy storage and transportation.

Material Specifications

• Rope: Kernmantle, 12,000 lb. tensile strength, 11/16" diamiter.
• In-line Energy Absorber: Polyester
• Tensioner: Alloy Steel, Min 5,000 lb. tensile strength.
• Carabiners: Alloy Steel; Min. 5,000 lbs. tensile strength with 3,600 lbs. Gate Strength.
• O-rings: 3” Plated, forged alloy steel, Min, 5,000 lbs.
• Webbing: Polyester; Min. 5,000 lbs. tensile strength
• D-rings: Alloy Steel; Min. 5,000 lbs. tensile strength

Peformance Specifications

• Tensile Strength: Min. 5,000 lbs.
• Max. Capacity: 310 lbs./user up to 2 users
• Max. Allowable Freefall: 425 lbs./user up to 1 users. 6 feet
• System Length: 60’

Relevant Standards

• OSHA: 1926.502
