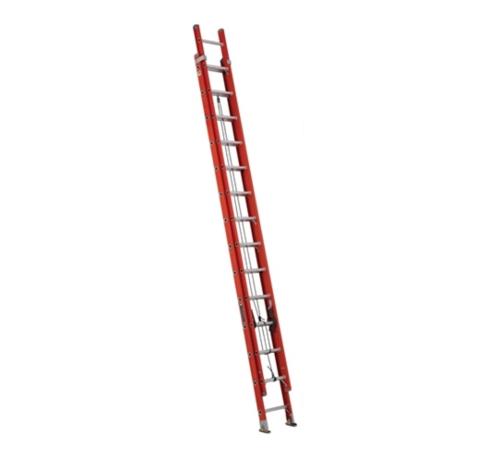

28 ft Louisville Type 1A Fiberglass Extension Ladder

This Louisville 28 ft. fiberglass extension ladder has a 300 lbs. load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented QuickLatch system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE3228 fiberglass extension ladder meets or exceeds the safety standards set by ANSI, CSA and OSHA.

Features

• Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
• Patented QuickLatch rung lock system
• Steel swivel safety shoe with metal shield
• Direct rung-rail connection
• Mar-resistant rail end caps
• Outside slide guides
• D-Shaped rungs
• Rope and pulley included

Specifications

• Style: Standard
• Duty rating: Type IA
• Load capacity: 300 lbs
• Size: 28 ft
• Number of steps: 28
• Rung type: D-rung
• Step depth: 1.5 in
• Material: Fiberglass
• Maximum standing height: 21.166 in
• Closed volume: 11.178 cu. ft.
• Closed height: 173.5 in
• Closed depth: 6.25 in
• Closed width: 17.812 in
• Section length: 14 ft
• Total length: 28 ft
• Max. extended length: 25 ft
• Rail depth: 3.25 in
• Inside width base: 14.645 in
• Inside width fly: 13.688 in
• Outside width base: 17.063 in
• Outside width fly: 16.088 in
• ANSI Certified
• OSHA Certified
• CSA Certified
